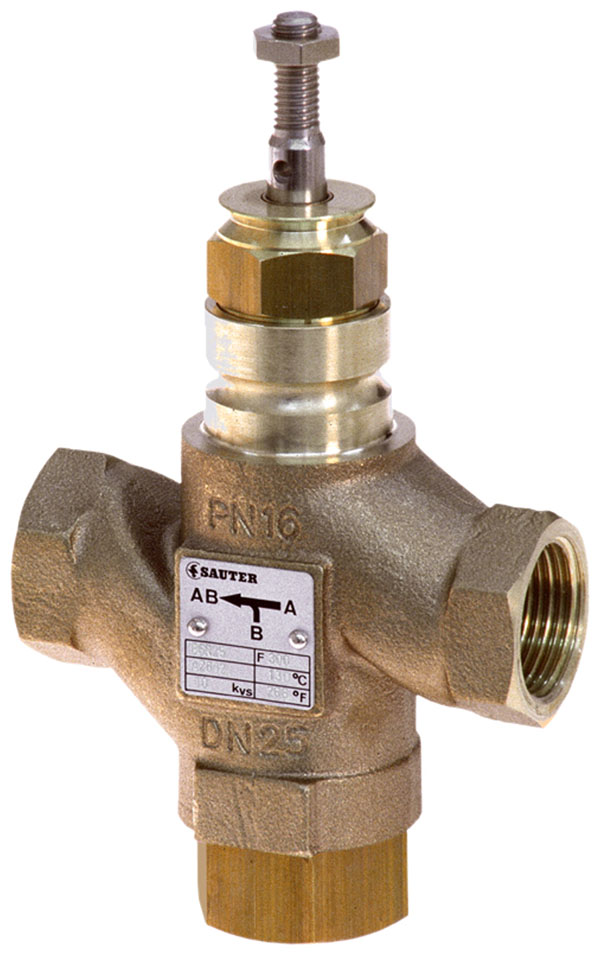

3-way valve with female thread, PN 16 (el.)

Regulating valve free of silicone grease with female thread DIN EN ISO 228-1 G for the control of cold/hot water in closed and open circuits

In combination with valve actuators AVM 322, AVM 322S, AVM 234S, AVF 234S

Equal-percentage or linear characteristic, can be set with SUT valve actuators (SAUTER Universal Technology) to linear or equal-percentage

Control passage A–AB closed when the spindle is moved out

Can be used as a control valve or a distribution valve

Valve body and seat made of gunmetal

Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM

Stainless-steel spindle
