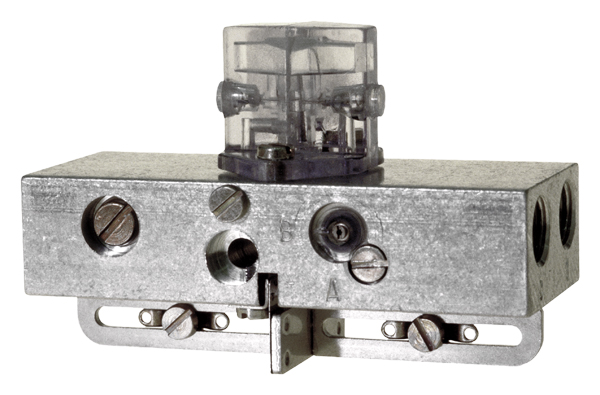

Pneumatic positioner
XSP
How energy efficiency is improved
Allows precise regulation of energy requirement using pneumatic valve actuators
Kenmerken
-
Conversion of a continuous positioning signal into a defined position on the pneumatic drive
-
The use of a positioner provides increased positioning accuracy, partitioning of the control range, reversal of the direction of action and an increase in positioning speed
-
Compressed-air connections with Rp⅛” female thread
-
Measuring connection for output pressure with M4 thread
-
Measures the valve stroke using a measuring spring
Datasheets
Montage-instructies
Verklaring betreffende materialen en milieu
Brochures
XSP: Pneumatic positioner
pdf : 97 KB
pdf
XSP31 (AV42...45P)
pdf : 306 KB
pdf
XSP 31 (AK 41...AK43P)
pdf : 1 MB
pdf
XSP31F001
pdf : 2 MB
pdf
XSP31, XSP31G
PDF : 33 KB
PDF
Pneumatic room pressure control
pdf : 361 KB
pdf
