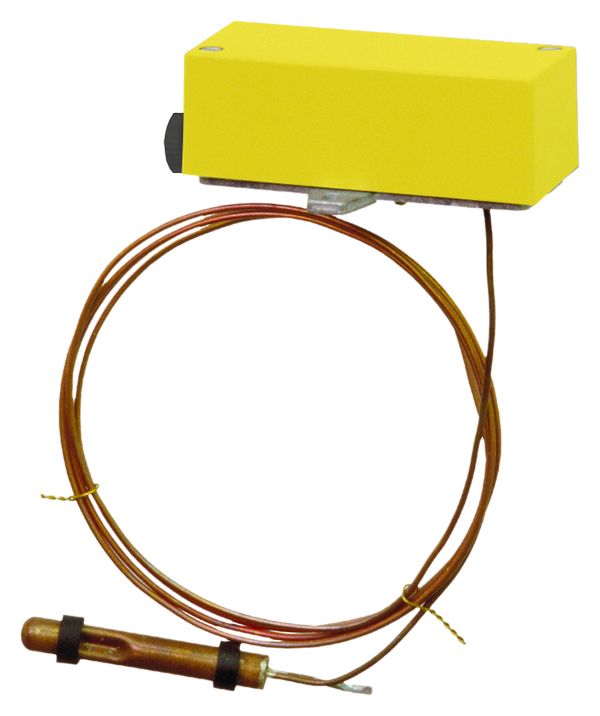

Outdoor-temperature transducer
TWUP
How energy efficiency is improved
Accurate recording of temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Pneumatic measurement and/or control of outside temperature in combination with pneumatic control equipment (Centair).
Properties
Technical description
Accurate recording of temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Pneumatic measurement and/or control of outside temperature in combination with pneumatic control equipment (Centair).
Properties
- Part of the Centair family of systems
- Capillary tube and cartridge filled with expansion fluid
- Conversion of temperature into a standard 0.2 to 1.0 bar pneumatic signal
Technical description
- Supply pressure 1.3 bar ± 0.1
- Nozzle/ball system
- Linearity of output signal <2%
Product zoeken
Soorten
TWUP210F001
Pneum outdoor temp transd.-20..40°C
TWUP220F001
Pneum outdoor temp transd.5-35°C
Datasheets
Montage-instructies
Andere documenten
Brochures
TWUP: Outdoor-temperature transducer
pdf : 161 KB
pdf
TWUP210, 220
pdf : 683 KB
pdf
Centair. The pneumatic universal controller system for air-conditioning and heating systems
pdf : 405 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
