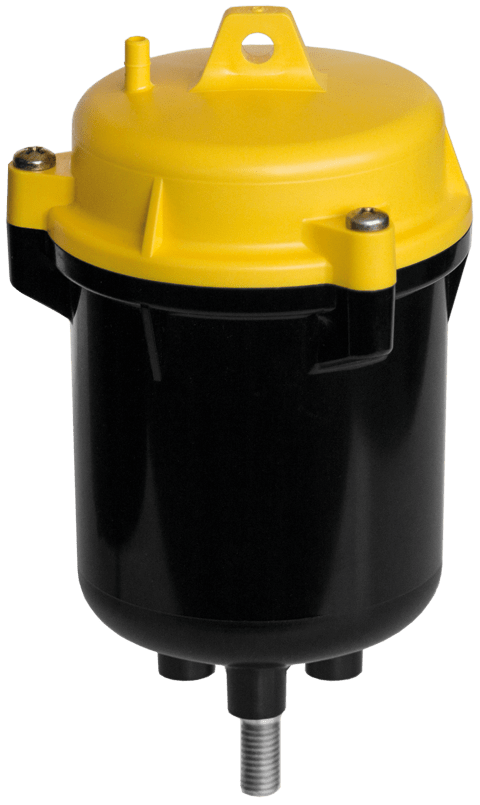

Pneumatic actuator
AK31 P
How energy efficiency is improved
Precise damper activation with only the slightest air requirement
Kenmerken
-
Conformity tested as per EN 13463-1 and EN 1127-1 (potentially explosive atmosphere 1 II 2 G T6)
-
Rolling diaphragms made of silicone; drive spindle in stainless steel with M8 male thread
-
Plug nipple for connecting plastic tubing with an internal diameter of 4 mm
Datasheets
Montage-instructies
Verklaring betreffende materialen en milieu
Brochures
AK31 P: Pneumatic damper drive
pdf : 1 MB
pdf
AK31P
pdf : 647 KB
pdf
MD - AK43P - EN
PDF : 284 KB
PDF
Pneumatic room pressure control
pdf : 361 KB
pdf
