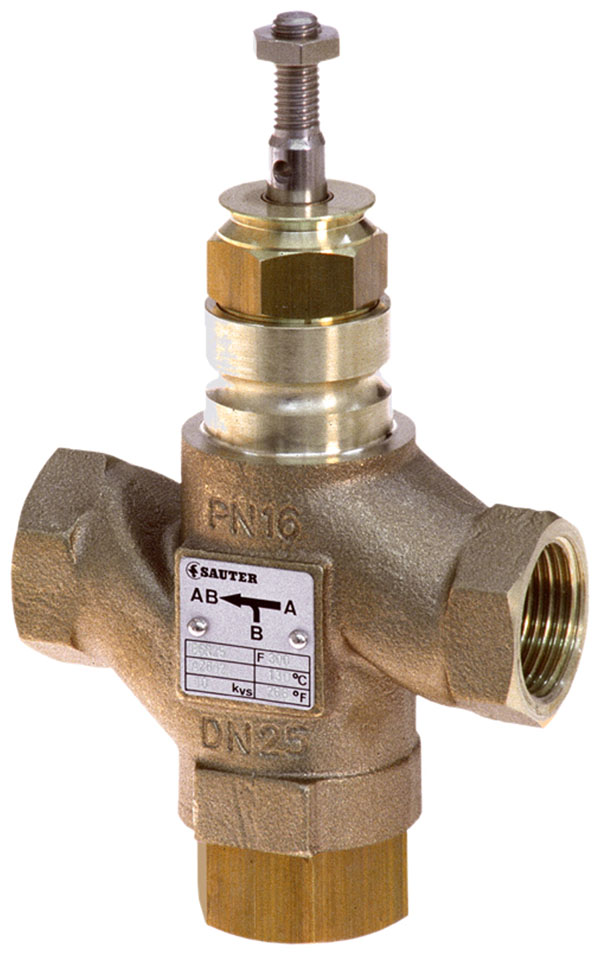

3-way valve with female thread, PN 16 (pn.)
B6R
How energy efficiency is improved
Efficiency means precise and reliable control
Kenmerken
-
In combination with AVP 142 and AV 43 valve actuators
-
Regulating valve free of silicone grease with female thread DIN EN ISO 228-1 G for the control of cold/hot water in closed circuits
-
Control passage A–AB closed when the spindle is moved out
-
Used as a control valve
-
Valve body and seat made of gunmetal
-
Stainless-steel spindle
-
Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
Datasheets
Montage-instructies
Servicedocumentatie
Brochures
B6R: Three-way valve with inside thread, PN 16
pdf : 1 MB
pdf
AVP142 (V6 . , B6 . ,VX . ,BX . )
pdf : 688 KB
pdf
B6R
pdf : 178 KB
pdf
0217268, 0217639, 0361988 (V6,B6,VX,BX)
pdf : 110 KB
pdf
B6R
pdf : 102 KB
pdf
