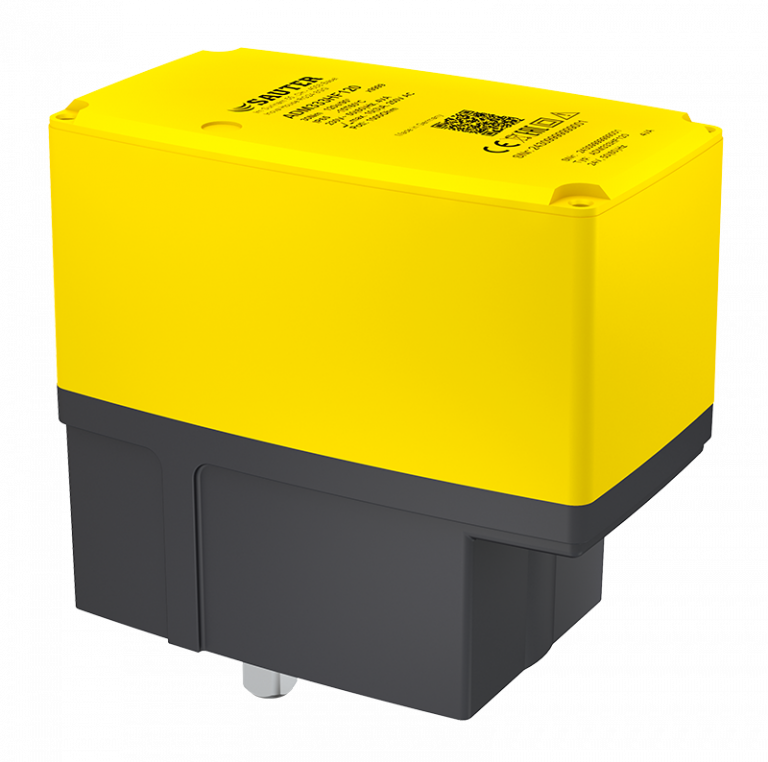

Motorised actuator with positioner

Actuation of final control elements such as butterfly valves, gates and air dampers

For controllers with continuous output (0(2)…10 V/0(4)…20 mA)

Synchronous motor with two limit switches and integrated positioner

Menu-led configuration via an internal TFT display

Positional feedback signal via 0(2)…10 V/0(4)…20 mA

Potential-free fault signal output

Configurable direction of operation

Control unit to be actuated can be moved to any intermediate position

Maintenance-free metal gearbox

Three cable inlets with M16 × 1.5 cable gland for cables Ø 4.5 to 10 mm
